Unit 3

Unit 3

NEP | Belgium

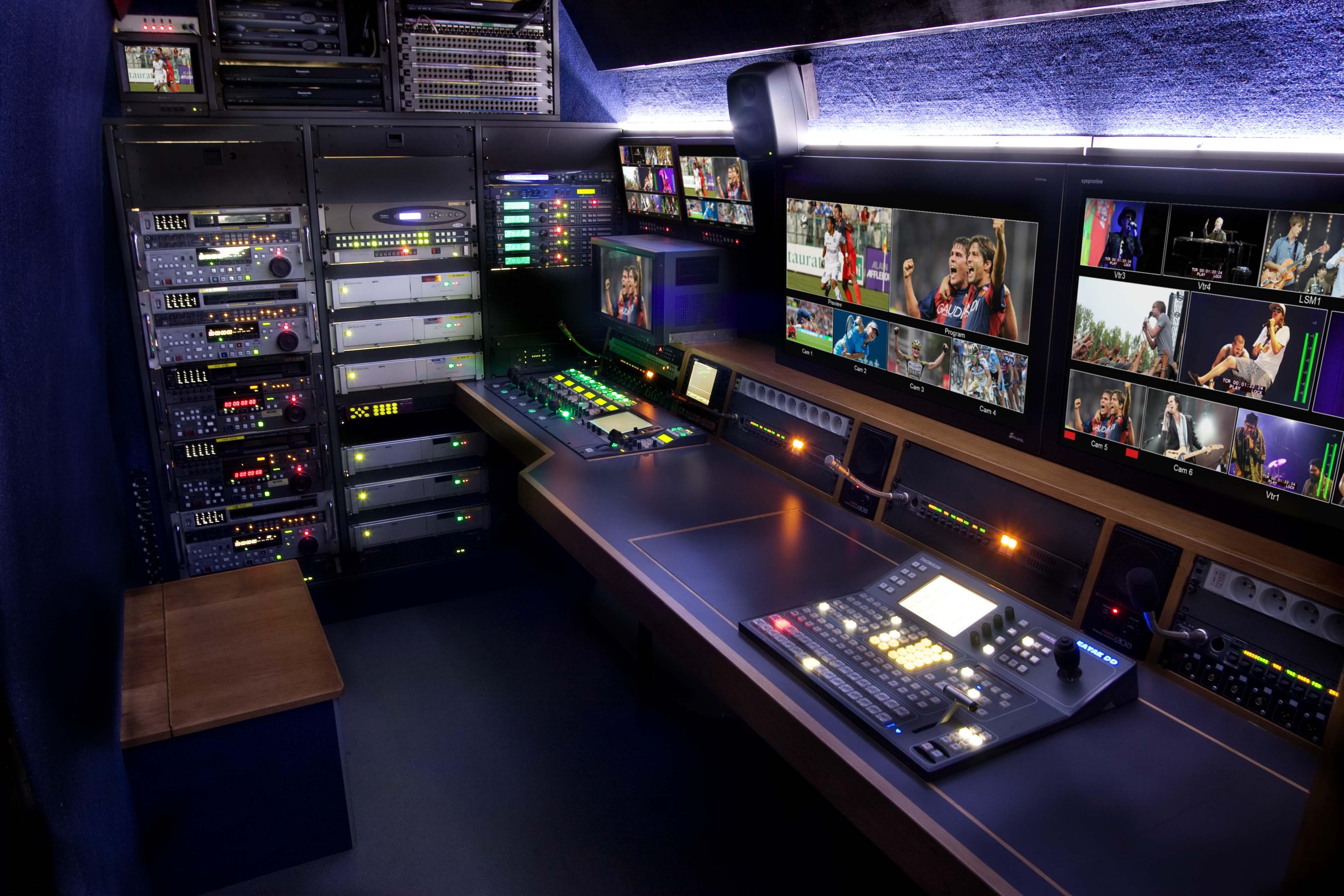

High-end technology in a compact layout, makes this OB in high demand for small productions with big needs. From talk shows, to small concerts or sports events, this unit is an efficient solution and can handle up to 6 cameras.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • Dimensions: Truck - 7,3m x 1,7m x 3,3m; Work Area - 4,7m x 1,7m
  • 10 kVA on 3-Phase, 400V, 32A CEE (P17) connector
Production
  • GVG Kayak HD250, 2,5ME Switcher
  • 24 inputs, 6 ch Ramrecorder, 4 ch DVE Dual Chroma Keyer,12 outputs
  • Upgradable to 3G Switcher
Communications
  • Clearcom MMX24: 24x24 matrix 6x Internal digital panels
    2x External digital panels 2x 2-Wire interface, 6x 4-Wire interfaces
  • 6 Walkie Talkies
  • 2 ISDN codec
  • 1 PSTN Phone Hybrid
  • Overline Systems or Telex BTR-700/800 (on request)
Cameras
  • Up to 6x GVG LDX 80 / LDK8000 Elite / Sony HDC-2550 camera /Sony HDC-4300 / GVG LDX
Support Equipment
  • Router Leitch Panacea 16 x 8 HD/SD, clean switch
  • Snell & Wilcox 6200, Barco Folsom Image Pro HD, Leitch, Axon, etc. (Upon Request)
Audio
  • Yamaha DM1000 Digital Audio Console 16 mic/line inputs 4 line inputs 12 line outputs 32 AES inputs / 32 AES Outputs
  • 1 Software Jingle Player
  • TC Electronic DB Max
Record & Playback
  • 3 DVD Recorder w/ remote control
  • Up to 6 VTR
  • Up to 3 EVS
Unit3 Floorplan
